TWISTERS, LEAFLET INSERTER, BARCODE READER

PACKAGING TWISTERS, LEAFLET INSERTER, CAN BARCODE READER

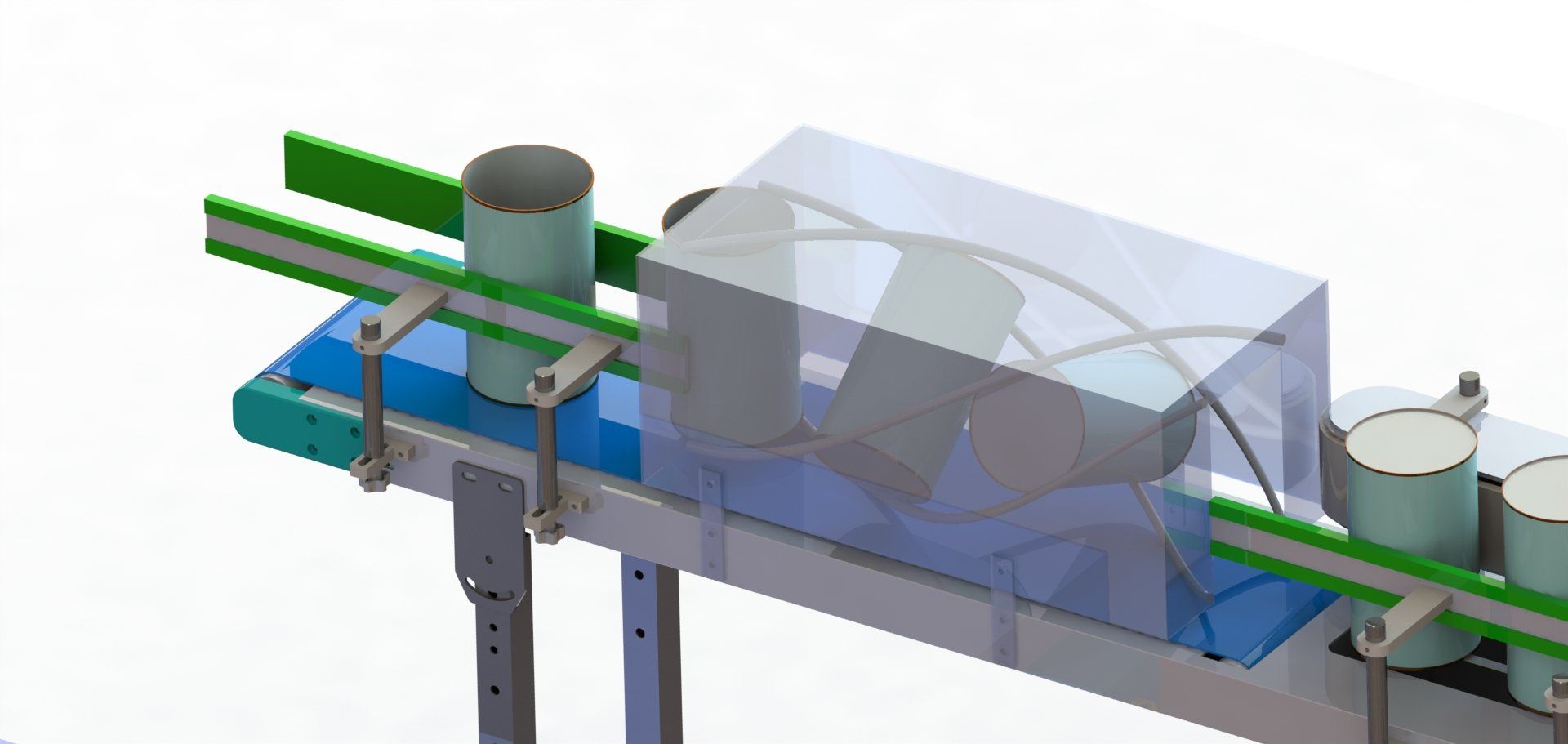

PACKAGING CONTAINERS TWISTER TWISTER

Sapli supplies an inline 180º degree packaging containers twisters, which gently and rapidly invert or rotationally position rigid packaging containers. These devises are normally needed in tree points of line:

1. Before Containers Cleaning System (open side up to open side down)
2. After Containers Cleaning System (open side down to open side up)
3. After Seaming, Cleaning, Leak Testing and Laser Coding Processes (bottom side up to bottom side down)

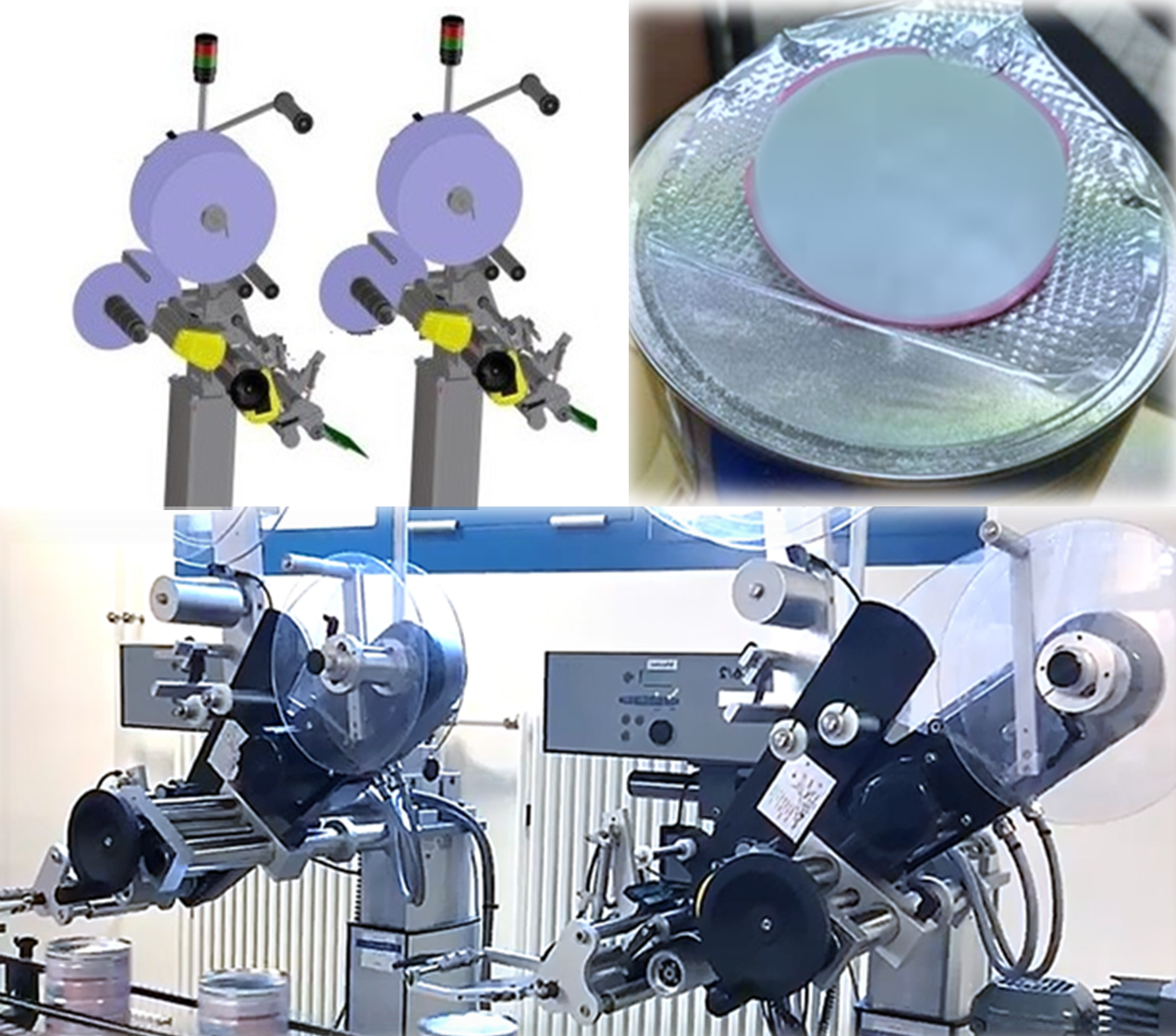

LEAFLET INSERTER

Non-stop twins model leaflet attaching machine:

• Easy date backup
• Top can labelling
• Product sensor: light barrier and reflector
• End of label roll – signal lamp
• Conveyor speed: up to 74 m/min
• Max diameter of label roll: 400 mm

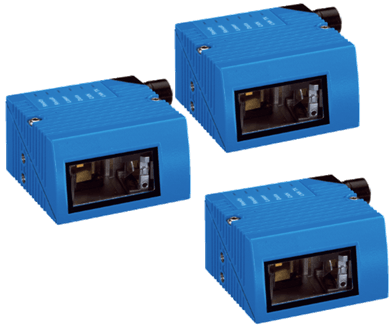

CAN BARCODE READER

Can barcode reader is based on 3 cameras, able to capture the barecode on the can lateral side from all possible angles. The system allows to assure the correct tracibity of the packing process.

Connection type: Ethernet
Scanner design: Line scanner
Scanning frequency: 400 Hz ... 1,200 Hz
Code resolution: 0.2 mm ... 1 mm
Reading distance: 60 mm ... 365 mm 1
Bar code types:
All current code types, Code 39, Code 128, Code 93, Codabar, GS1-128 / EAN 128, UPC / GTIN / EAN, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Telepen, MSI/Plessey
