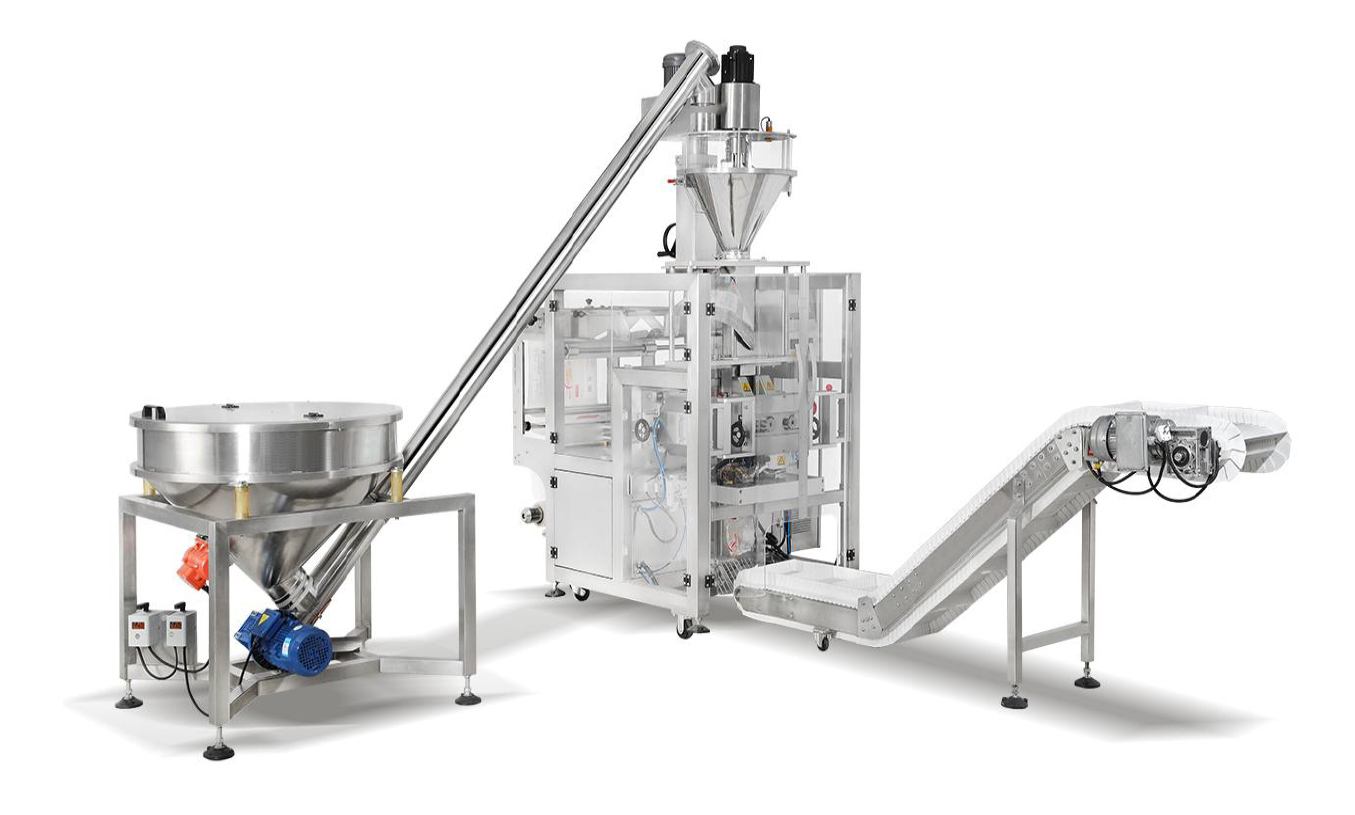

VFFS VERTICAL FORM FILL AND SEAL MACHINE
Automatic bag filling equipment for different range of sizes and weights. Powdered products are elevated through the screw conveyor into the auger filler. Bags are filled with the adjustable weight defined in the machine HMI. Film roll is unrolled from the back of the machine into different shape bags.
| FEATURE | DETAIL |
|---|---|
| Production speed | 50 bags per minute |
| Weight range | 200-3000gr |
| Bag length range | 100-350mm |
| Bag width range | 70-180mm |
| Bag side range | 40-80mm |
| Accuracy | +-1% (depending on product) |
Standard system elements
Complete solution for bag filling for powdered or granular products.
| Features | Details | |
|---|---|---|

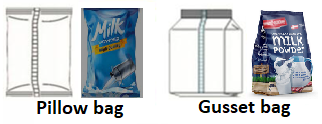

| ✓ Vertical form fill seal machine | Up to 50 bags per minute. Bag type: pillow, standing bag, bag with euro slot. | |
| ✓ Screw conveyor | Powder elevating unit for 1 head filler | |
| ✓ Auger filler | Tooling for 1 set included. Open-able. From 100 to 3000gr | |
| ✓ Auger tooling | Format for auger filler | |
| ✓ Conveyor for bags | Extraction for accumulation table | |
| ✓ Automatic skew detection | Let film back to the forming tube automatic if off-track |
Fill bags quick and easy
- Start production fast and easy with quick ROI. Powder and grain products packagin solution. Include product feeder and output system
- Bagging system to start from high production and different range bags in one machine or start basic and grow from there.

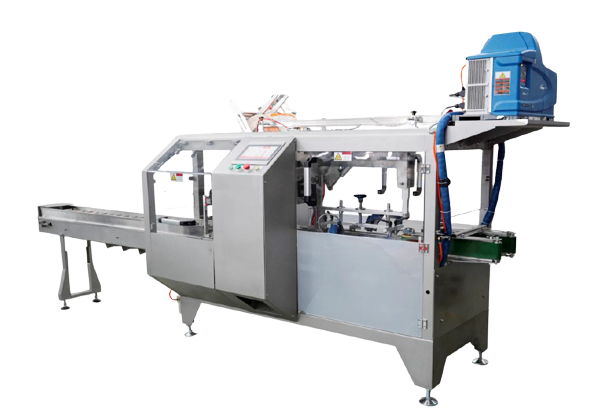

Combine VFFS with casepacker
Get the best and pack your bags in case in boxes directly.
Fully automatic system.
Vertical box casepacking hot melt glue machine adopts seven servo drive motors with independent control and feed detection.
Suitable for packaging for multiple box formats packed in bags or in trays. Machine allows format change products different user requirements.
